Star Delta Timer Relay 8A 2CO 0.3-30sec 24-240V AC/DC Harmony (RE22R2QEMR)

Description

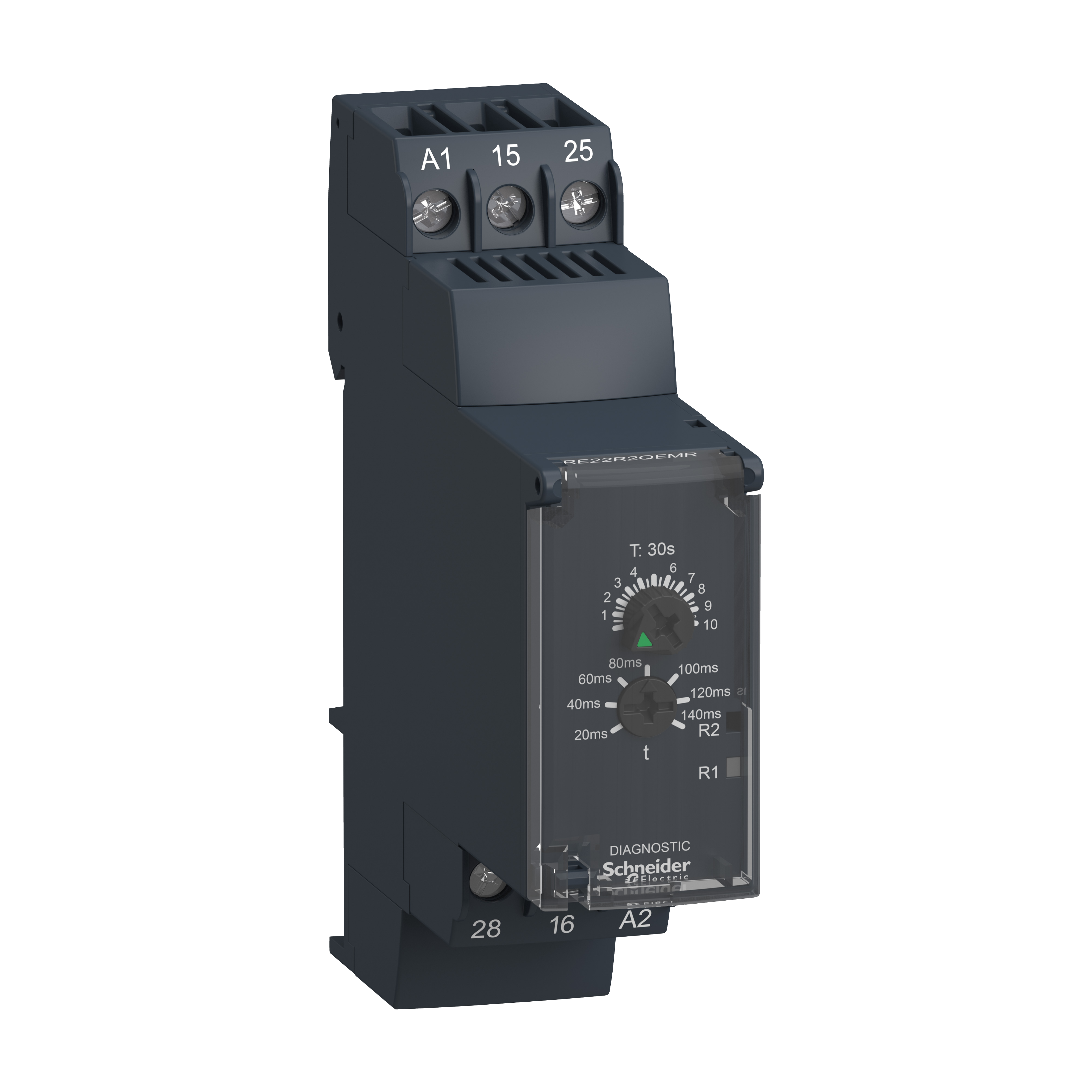

Schneider Harmony Star-Delta Timing Relay

Product Description:

The Schneider Harmony Star-Delta Timing Relay is a high-performance relay designed for precise control in industrial and commercial applications. It facilitates smooth transitions in star-delta motor starting and stopping sequences, offering reliable operation with a wide time delay range and versatile control features. The relay is engineered for ease of use, featuring a rotary knob for time setting and a diagnostic button for troubleshooting. It supports both AC and DC supply voltages, ensuring compatibility with various electrical systems.

Key Features:

• Rated Supply Voltage:
  • Range: 24-240V AC/DC
  • Frequency: 50/60Hz
• Rated Output Current: 8A
• Contact Configuration:
  • Type: 2 Change-Over Contacts (C/O)
  • Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO) outputs with split common
• Time Delay Range: Adjustable from 0.3 to 30 seconds
• Control Type:
  • Adjustment: Rotary Knob for setting time delay
  • Diagnostic: Button for troubleshooting and diagnostics
• Functions:
  • Star-Delta Relay: Ideal for star-delta motor control with precise timing and reliable switching
• Mounting: Compatible with 35mm DIN rail for easy installation
• Design: Compact and durable, suitable for various industrial environments

The Schneider Harmony Star-Delta Timing Relay is engineered to enhance operational efficiency and safety in motor control applications, ensuring reliable performance and ease of integration.
