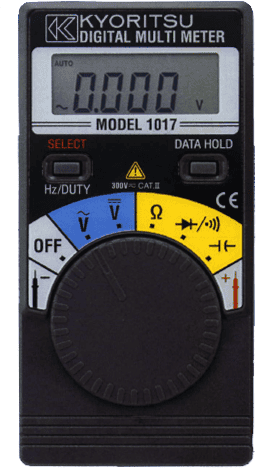

Kyoritsu Digital Multimeter - KEW 1017

SKU KEW 1017
by KYORITSU
KSh10,699.00 - KSh10,699.00
KSh10,699.00
KSh10,699.00 - KSh10,699.00
KSh10,699.00

Delivery time

1-3 Days

Share this:

Description

The Digital Multimeter KEW 1017 by Kyoritsu is a versatile and reliable instrument designed for precise electrical testing and measurement tasks. With its digital display, it provides accurate readings for voltage, current, resistance, and other essential electrical parameters.

Features:

  • Display : 4000 counts.
  • Auto range.
  • Diode test feature.
  • Capacitance test feature.
  • Continuity test.
  • Automatically turns power off in about 15 minutes to conserve battery life.
  • Designed to international safety standard IEC 61010-1 CAT III 300V.
DC V 400mV/4/40/400/600V (Input Impedance 10MΩ)
±0.8%rdg±5dgt (400mV/4/40/400V)
±1.0%rdg±5dgt (600V)
AC V 4/40/400/600V (Input Impedance 10MΩ)
±1.3%rdg±5dgt (4/40V)
±1.6%rdg±5dgt (400/600V)
Hz 10/100Hz/1/10/100/200kHz
Ω 400Ω/4/40/400kΩ/4/40MΩ
±1.0%rdg±5dgt (400Ω/4/40/400kΩ/4MΩ)
±2.5%rdg±5dgt (40MΩ)
Diode Test 4V Release Voltage:Approx. 0.4mA Test Current
Capacitance Test 4nF/40nF/400nF/4µF/40µF/200µF
Continuity buzzer 400Ω (Buzzer sounds below 120Ω)
Withstand Voltage 3700V AC for 1 minute
Standard IEC 61010-1 CAT III 300V
IEC 61010-2-031
IEC 61326-1
Power Source LR44 (1.5V) × 2
Dimensions 107(L) × 54(W) × 10(D)mm
Weight 70g approx.
Accessories LR44× 2
Instruction Manual
1017 (Soft Case)
1017H (Hard Case)



The Kyoritsu Digital Multimeter KEW 1017 is an essential tool for electricians, technicians, and professionals who require accurate and reliable measurements in various electrical systems.
