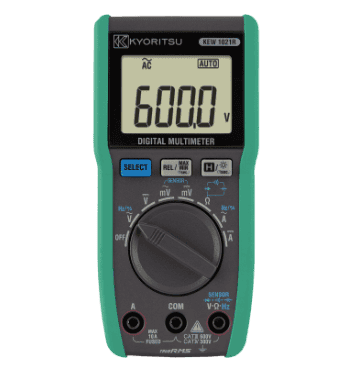

Kyoritsu Digital Multimeter 600V TRUE RMS - 1021R

SKU 1021R
by KYORITSU
KSh16,699.00 - KSh16,699.00
KSh16,699.00
KSh16,699.00 - KSh16,699.00
KSh16,699.00

Delivery time

1-3 Days

Share this:

Description

The Digital Multimeter 600V True RMS 1021R by Kyoritsu is a versatile and reliable instrument designed for precise electrical testing and measurement tasks. With its True RMS capabilities, it provides accurate readings for both AC and DC voltage up to 600V, as well as current, resistance, and other essential electrical parameters.

Features:

  • Accurate reading with True RMS
  • Large display with 6000 counts and Backlight
  • MIN/MAX function
  • Rugged and reliable
  • Enhanced current measuring function using an external clamp sensor
  • Sensor mode (with clamp sensor)
  • Ergonomic design
  • Safety Standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
DC V 6.000/60.00/600.0V (Auto-ranging)
±0.5%rdg ±3dgt
DC mV 600.0mV
±1.5%rdg ±3dgt
DC Clamp Sensor 60.00/200.0A (Auto-ranging)
±1.5%rdg ±3dgt + Sensor accuracy
AC V 6.000/60.00/600.0V (Auto-ranging)
±1.0%rdg ±3dgt [40 - 500Hz]
AC mV 600.0mV
±2.0%rdg ±3dgt [40 - 500Hz]
AC Clamp Sensor 60.00/200.0A (Auto-ranging)
±2.0%rdg ±3dgt + Sensor accuracy [40 - 500Hz]
DC A 6.000/10.00A (Auto-ranging)
±1.5%rdg ±3dgt
AC A 6.000/10.00A (Auto-ranging)
±1.5%rdg ±3dgt[45 - 500Hz]
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (Auto-ranging)
±0.5%rdg ±4dgt (600Ω),
±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ)
±1.5%rdg ±3dgt (40MΩ)
Continuity buzzer 600Ω (Buzzer sounds below 90Ω)
Diode test Open circuit voltage: < 3.0V
Capacitance 60.00/600.0nF/6.000/60.00/600.0/1000µF
±2.0%rdg ±5dgt (60/600nF)
±5.0%rdg ±5dgt (6/60/600/1000µF)
Frequency ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt
ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt
DUTY 10.0 - 90.0% ±1.0%rdg ±3dgt [50/60Hz]
Applicable standards IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V
IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)
Power source R03 (1.5V) × 2
Dimension 155(L) × 75(W) × 40(D)mm
Weight Approx. 250g (including batteries)
Accessories Wing-type holder, Flat-type holder, 7066A (Test leads),
8919 (Ceramic fuse [10A/600V]) × 1 (included),
9097 (Carrying case), R03 × 2, Instruction manual



The Kyoritsu Digital Multimeter 600V True RMS 1021R is an essential tool for electricians, technicians, and professionals who require accurate and reliable measurements in various electrical
