analog-multimeter-1000v-ac-dc-1109-kyoritsu

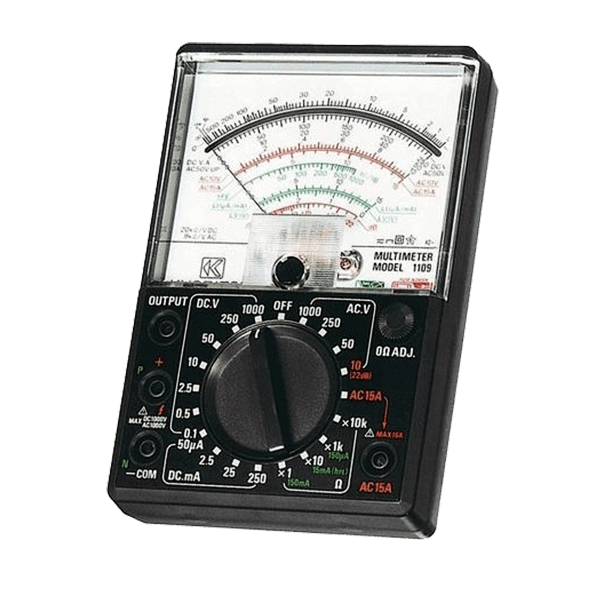

Kyoritsu Analog Multimeter 1000V AC/DC - 1109

SKU 1109
by KYORITSU
KSh13,299.00 - KSh13,299.00
KSh13,299.00
KSh13,299.00 - KSh13,299.00
KSh13,299.00

Delivery time

1-3 Days

Share this:

Description

Kyoritsu KEW 1109S Analogue Multimeters mirrored scale for easy and accurate reading. Output terminal to cut off DC component when measuring AC voltage. Safety designed input terminals and test leads.

Features:

  • Mirrored scale for easy and accurate reading.
  • Fuse and diode protected circuit (except 15A AC range).
  • Output terminal to cut off DC component when measuring AC voltage.
  • Safety designed input terminals and test leads.
DC V 0.1/0.5/2.5/10/50/250/1000V
±3% of FS (20kΩ/V)
AC V 10/50/250/1000V (9kΩ/V)
±3% of FS
DC A 50µA/2.5/25/250mA
±3% of FS
AC A 15A
±3% of FS
Ω 2/20kΩ/2/20MΩ
±3% of scale length
Decibel -10 - +62dB
hFE 0 - 1000 (Ω × 10)
±3% of scale length
Withstand Voltage 6000V AC for 1 minute
Power Source R6 (AA) (1.5V) × 2
6F22 (9V) × 1
Dimensions 150(L) × 100(W) × 47(D)mm
Weight 330g approx.
Accessories 7085 (Test Leads)
8901 (0.5A/250V fuse) × 2
R6 (AA) × 2
6F22 × 1
Instruction Manual



The Kyoritsu Analog Multimeter 1000V AC/DC 1109 is an essential tool for electricians, technicians, and hobbyists who require accurate and reliable measurements in electrical systems.
